solar power inverter
solar power invertersolar power inverter

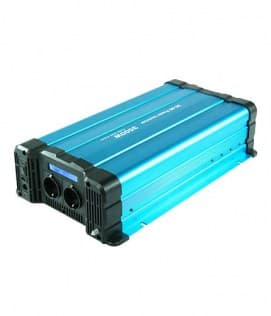

FS4000D series portable pure sine wave solar power inverter 2020

Array

$0.00

portable pure sine wave solar power inverter can be used in home and office appliances, power tools and portable equipments, vehicle, yacht . carvan and solar power systems etc.

FS4000D series portable pure sine wave solar power inverter 2020

Application:

home and office appliances, power tools and portable equipments, vehicle, yacht . carvan and solar power systems etc.



Quick Details

  • Brand Name: SOLARVERTECH / Accept OEM
  • Model :FS4000D pure sine wave power inverter
  • Type:DC/AC Inverters, 50HZ/60HZ
  • Certificate: CE ROHS E8
  • Display:LCD
  • Weight:6KGS
  • Size:325.2*281.3*112.7mm
  • Warranty:2 years



Features

  • PURE sine wave output;High surge power.
  • Rated power range from 600W to 4000W.
  • Fully electric protection:Lower voltage alarm & shutdown,over voltage,earth fault, short circuit, over load,soft start,over temperature,polarity reverse.
  • Color can be customized.
  • Optional:LCD display:input voltage, output voltage, proctecion status etc.
  • Remote control function default,normal remote controller,LCD remote controller wirless remote
  • controller optional.

FS series Technical Parameters

MODEL

------

------

------

FS4000D-212

FS4000D-224

------

Output

AC Voltage

------

220/230/240VAC

Rated Power

4000W

Surge Power

Load 120~150%;8000W(3ms.;resistive)

Waveform

Pure Sine Wave(THD<3%)

USB port

------

------

------

5V  2.1A

5V  2.1A

------

Frequency

50/60Hz±0.05%

AC Regulation

------

±10%

Power Factor Allowed

COSθ-90º~COSθ+90º

Standard Receptacles

USA/British/Franch/Schuko/UK/Australia/Universal etc.optional

LED Indicator

Green for power on, red for faulty status

LCD display

voltage, power, protection status(optional)

Remote control function

default

Remote controller

CR80/CR80 optional

Input

No Load Current Draw

------

------

------

≤1.4A

≤1.0A

------

DC Voltage

------

------

------

12VDC

24VDC

------

Voltage Range

------

------

------

10.5~15VDC

21~30VDC

------

Efficiency (Typ.)

92%~95%

Fuse

------

------

------

40A×4

20A×4

------

Remote Control

Function(optional)

Protection

BAT.Low Alarm

------

------

------

10.5±0.5VDC

21±1.0VDC

------

BAT.LOW Shutdown

------

------

------

10±0.5VDC

20±1.0VDC

------

Over Load

Shut down output voltage, restart to recover

Over Voltage

------

------

------

15.5±0.5VDC

31±1.0VDC

------

Over Temperature

Shut down output voltage, recover automatically after temperature goes down

Output Short

Shut down output voltage, restart to recover

DC Input Reverse Polarity

By fuse

Earth Fault

Shut off o/p when the load has electrical leakage

Soft Start

Yes,3~5 Seconds

Environment

Working Temp.

0~+50℃

Working Humidity

20 ~ 90% RH non-condending

Storage Temp.&Humidity

-30~+70℃,10~95%RH

Safety&EMC

Safty Standards

------

Certified EN 60950-1; 2006+A11: 2009+A1:  2010+A12: 2011+A2: 2013.

Isolation Resistance

I/P-O/P:100M Ohms/500VDC

EMI Conduction&Radiation

------

Certified EN 62040-2: 2006, EN61000-3-2; EN61000-3-3;

EMS Immunity

------

Certified IEC61000-4-3, IEC61000-4-6

E-MARK

------

Certified ECE RIO.05:2014

Others

Dimension(L×W×H)

442.2 * 261.3 * 112.7mm

Packing

8kg;2pcs/17kg/0.07m³

Cooling

Load control fan or by thermal control fan

Application

Home and Office appliances,Portable Power Equipment,Vehicle,Yacht and Off-Gid Solar power systems…etc.
