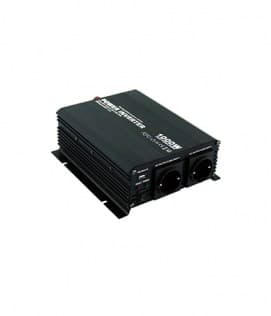

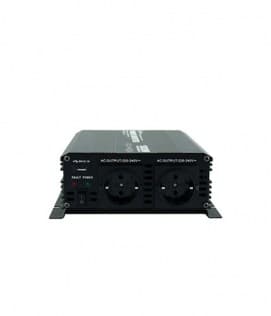

Portable Off grid DC-AC inverter modified sine wave power inverter 150-5,000W/12v 24v 48v)/ Max surge power:10KW

$0.00

This portable off-grid solar inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency.

Portable Off grid DC-AC inverter modified sine wave power inverter 150-5,000W/12v 24v 48v)/ Max surge power:10KW

Quick Details

Brand Name: SOLARVERTECH / Accept OEM
Type: NM5K DC/AC Modify Sine Wave Power Inverter
Package:Paper Skin Carton
Phase:Single Phase Solar Power
Application:Off-grid System
Output Current:according the load;Frequency:50/60Hz
Size:52.8*25.2*10.1cm
Weight:8.5kg
Certificate: CE ROHS E8
Warranty:2 years
Protection Function:Short Circut Protection
Efficiency:>90%
Surge power:10KW

Description:

Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.

This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.

Features :

Low voltage protection
Over voltage protection
Overload protection
Over temperature protection
Short circuit protection
Reverse Polarity Protection
Soft start
Auto. Reset after being in protected
A(USA),B(Australia),C(Universal),D(Europe+USA+Japan),E(UK),F(France),G(Germany),H(Brazil),I(Israel) sockets optional.

Technical Parameters

MODEL		NM5K-112	NM5K-124	NM5K-148	NM5K-212	NM5K-224	NM5K-248
Output	AC Voltage	100/110/120VAC			220/230/240VAC
	Rated Power	5000W
	Surge Power	Load 120~150%(3min.);10000W(3sec.;resistive)
	Waveform	Modified Sine Wave
	USB port	5V 2.1A	5V 2.1A	------	5V 2.1A	5V 2.1A	------
Input	DC Voltage	12VDC	24VDC	48VDC	12VDC	24VDC	48VDC
	Voltage Range	10.5~15VDC	21~30VDC	42~60VDC	10.5~15VDC	21~30VDC	42~60VDC
	Efficiency (Typ.)	89%~93%
	Remote Control	Function(optional)
Protection	BAT.Low Alarm	10.5±0.5VDC	21±1.0VDC	42±2.0VDC	10.5±0.5VDC	21±1.0VDC	42±2.0VDC
	BAT.LOW Shutdown	10±0.5VDC	20±1.0VDC	40±2.0VDC	10±0.5VDC	20±1.0VDC	40±2.0VDC
	Over Load	Shut down output voltage, restart to recover
	Over Voltage	15.5±0.5VDC	31±1.0VDC	62±2.0VDC	15.5±0.5VDC	31±1.0VDC	62±2.0VDC
	Over Temperature	Shut down output voltage, recover automatically after temperature goes down
	Output Short	Shut down output voltage, restart to recover
	DC Input Reverse Polarity	By fuse
	Earth Fault	Shut off o/p when the load has electrical leakage
	Soft Start	Yes,3~5 Seconds
