Portable CNC cutting machine

SteelTailor Valiant Portabe CNC Cutting MachineSteelTailor Valiant Portabe CNC Cutting Machines

SteelTailor Valiant Portable cutting machine


$0.00

• Higher Speed, 6000mm/min!
• No More Vibration!
• Wider Rails, More Stability!
• More Rigid Structure, Heavy Duty!
• Free Cutting Software;
• Support Flame or Plasma;
• Precision: 0.2mm;
• Customer Service, 24h/7d!

Valiant is the totally upgraded version of valiant portable CNC cutting machine!

The spring loaded drive motor system, which is commonly applied in the gantry type cutting machines, was introduced in the Valiant 1.0 series. The spring system has been proven not so suitable for the cantilever type machine. Valiant 2.0 is totally upgraded to ensure the optimized structure for the cantilever type portable machine.

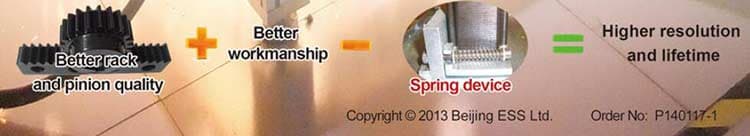

(Better rack and pinion quality) + (better workmanship)-spring device= higher resolution and lifetime

Valiant is totally upgraded for the cantilever type portable machines

  Valiant 1.0 Valiant 2.0
Installation Normal Convenient
Maintenance Difficult Convenient
Stability Good Excellent
Vibration Normal Less
Lifetime Normal Longer

2 Year warranty for all SteelTailor products (For machines made after Jan 1 2012)

Steeltailor, the world leader of Professional portable CNC machines, presents the customers a better version Valiant machine with optimized quality.

Ever since its launch, SteelTailor Valiant series portable CNC cutting machines have been favored by the customers. After a couple of years selling and service of this series, SteelTailor has received much request from the customers about the complicated and time consuming installation of the Valiant machine, which is the first version of its model. Analysis result by SteelTailor R&D team suggests a comparable shorter lifetime of that version too.

To ensure the quality and brand strength, SteelTailor has totally upgraded the design of Valiant. The structure has been totally revised to enable a much longer lifetime, better precision and stability, easier installation, and smoother motion. The new version of Valiant machine can be assembled and dissembled as easy and simple as the world known SteelTailor Power machine.


  • Cross beam can be removed easily from the central unit. The installation and packing of the machine is much easier and more convenient.

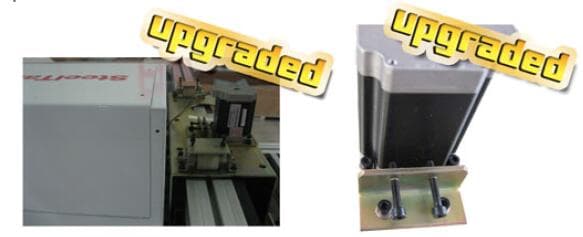

  • The spring follow-up device is removed in Valiant 2.0. It improves the precision and lifetime of the machine.

  • Advanced Stability and Precision

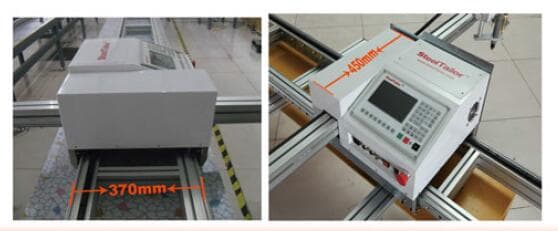

The frame is wider with high-quality racks, which makes the cross beam move more stably and keep high precision.The cutting head will not bend.


  • More user friendly
    Check up and maintenance of the controller can be done simply by removing the top cover.


Higher Speed and Better Stability

Valiant Series is total upgraded for the cantilever type portable CNC cutting machines.

With a higher precision in both the rack and the pinion, the spring loaded drive motor system is removed in Valiant 2.0. It overcomes the fatigue problem of the spring after a time of use. As a result, the stability and lifetime of the machine are improved. Due to the removal of the spring, the positioning precision of the machine is unified in the effective cutting range. The dimension of the cut work piece is also more accurate and precise.
