Portable CNC cutting machine

SteelTailor PowerII portable cutting machine

Array

$0.00

The original Portable CNC Cutting Machines
Upgraded!
110v or 220v auto switch Flame feature optimized Better quality in components, longer service life.
Default configuration
Flame/Plasma automatic sensing THC
Basic nesting software for free



SteelTailor PowerII portable CNC cutting machine

The original Portable CNC Cutting Machines

Upgraded!

110v or 220v auto switch

Flame feature optimized

Better quality in components, longer service life.

Default configuration

Flame/Plasma automatic sensing THC

Basic nesting software for free



SteelTailor™ Power II Series Portable Cutting Machine

SteelTailor Power series portable CNC cutter is the most classical version of portable CNC cutting machines. It has provided the global small and medium metal fabrication shops with the most economical CNC cutting solutions. 6 years after its first launch, Power series is still the best seller among SteelTailor product family. There are over 2000 SteelTailor Power machines working in different corner of the world. Power II is developed on the understanding of users comments and requests. Power II is more handy, more reliable and durable. Please consult your local distributor for more information.

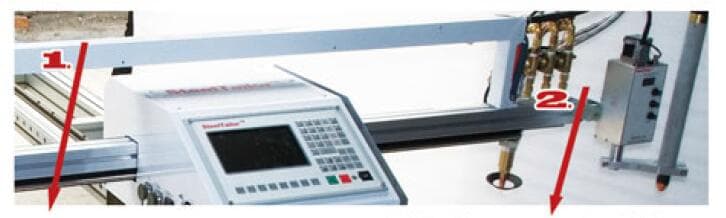

Oxy-Fuel cutting feature upgraded

1. The gas tube is laid outside the cross-beam, makes maintenance easy.

Practical plasma cable support frame.

2. Pre-heat Oxygen is CNC controlled. Easy operation, Non-stop cutting.



Advanced Stability

X-axis drive mode is optimized for SteelTailor Power CNC cutters. The introduction of guiding rail in the x-axis of the machine, enables a more stable movement of the crossbeam and avoids the cutting head from declining.

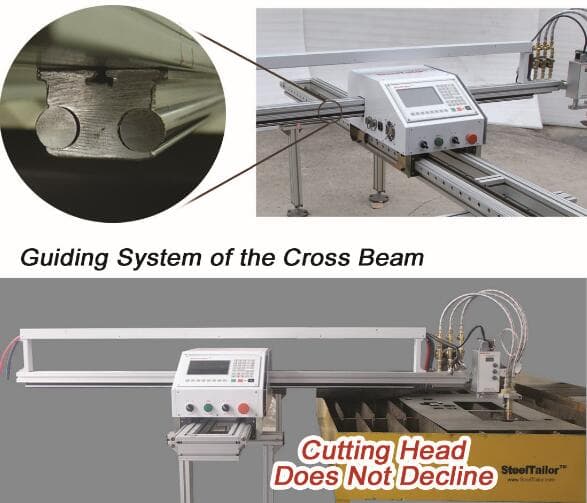

Guiding System of the Cross Beam

Cutting Head Does Not Decline

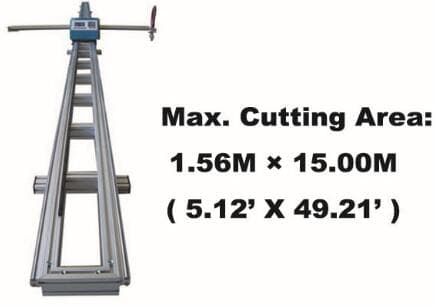

Bigger Cutting Area Max.

Cutting Area:1.56M × 15.00M ( 5.12’ X 49.21’ )

95~250 V Voltage Range

Power II is adaptable to all the civil power supply all over the world.

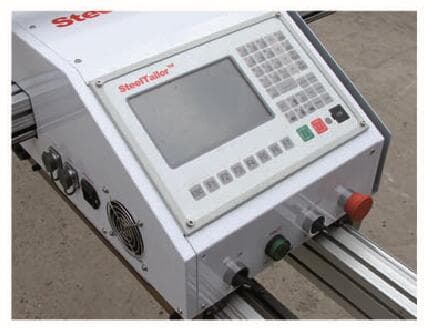

Better quality electronic component, longer service life.

1、We invest our time and money to produce reliable and durable machines. Small components such as quick connectors and switches are also in our concern.

2、2 years warranty

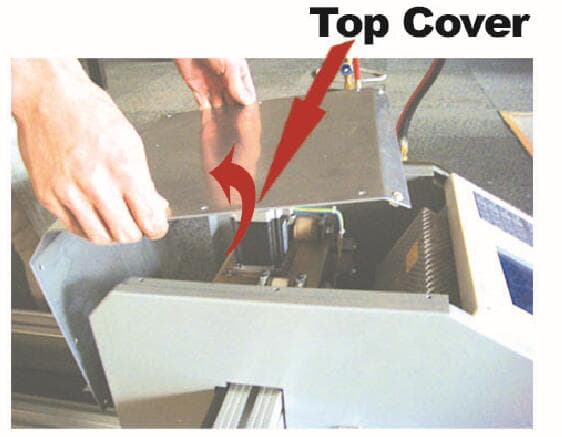

Easier Maintenance

Check up and maintenanceof the controller can be done simply by removing the top cover

Top Cover

Input Power

200W

Power Supply

95~250 V AC60/50Hz

Cutting Thickness

Flame5-150mm

PlasmaSubject to plasma cutter

Effective Cutting Range

Standard size: X:1200mm,Y:2000mm

If requested, it could be customized with width 1.5m/1.8m,

length 3m/4m/5m/...15m(max)

Modes of Cutting

Flame or Plasma

Combustive Gas

Oxygen

Combustive Gas Pressure

Max1.5MPa

Cutting Speed

0-600mm/min(Flame)0-4000mm/min(Plasma)

Torch Height Control

Automatic arc voltage sensing THC for plasma;

Automatic capacitive sensing THC for flame;

Total Machine Weight

70.5kg

Cutting Software

IBE cncCUT Basic version (default) or

FastCAM Standard version (optional)
