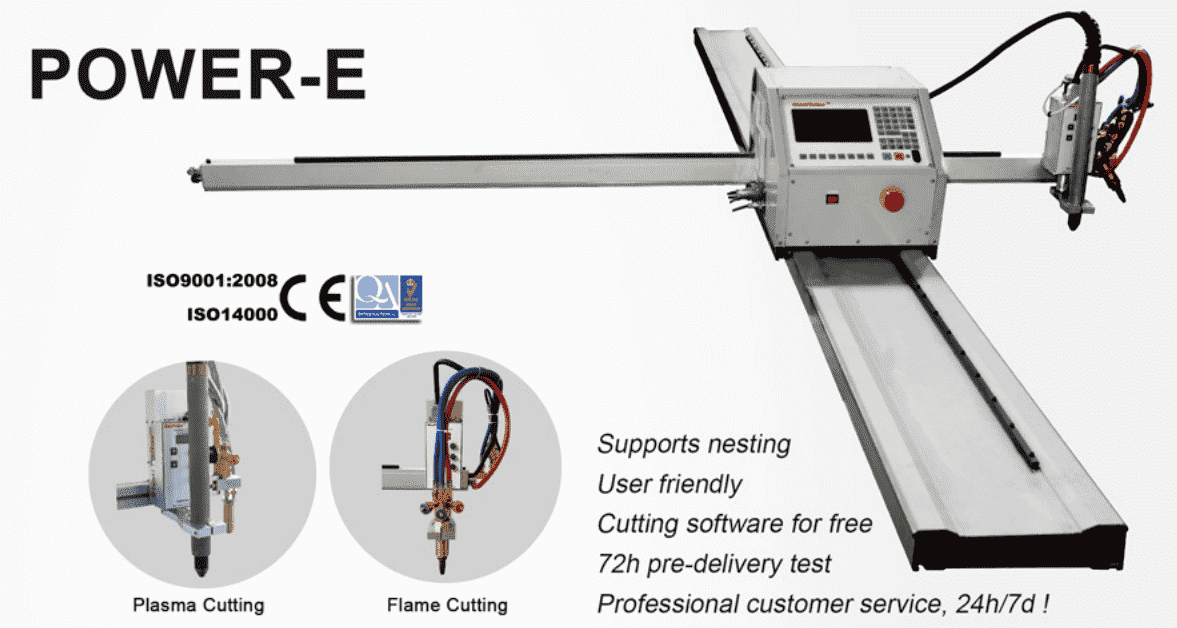

Portable CNC cutting machine

Power-E portable CNC cutting machinePower-E portable CNC cutting machine

SteelTailor Power-E portable CNC cutting machine

Array

$0.00

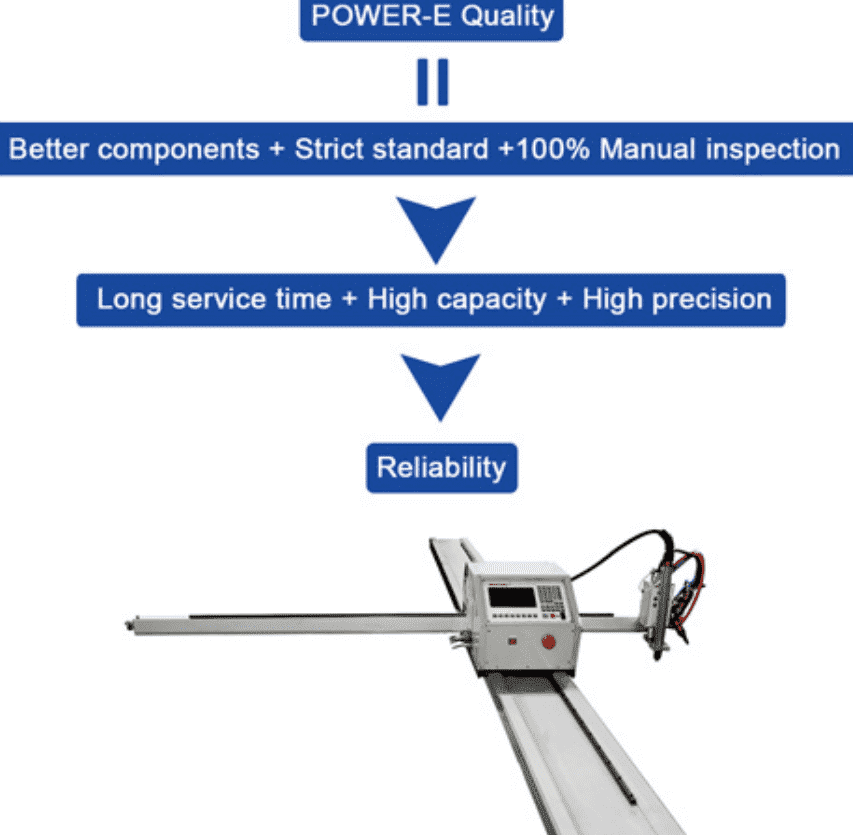

POWER-E quality = better components + strict standard +100% manual inspection
Long service time + high capacity + high precision
Reliability

Input Power 180W
Electric Voltage 220V AC/110V AC,   60/50HZ
Cutting Thickness Flame:5-150mm
Plasma:Depend on plasma soure
Effective Cutting Range X:1500mm, Y:3000mm
Modes of Cutting Flame or Plasma
Combustive Gas Oxygen
Combustive Gas Pressure Max:1.5MPa
Cutting Speed 0-600mm/min(Flame),0-6000mm/min(Plasma)
Total Machine Weight 70.5kg
Arc voltage sensing THC Optional
Cutting Software FastCAM Standard version
Power-E portable CNC cutting machine
Power-E portable CNC cutting machine

 SteelTailor Power-E portable CNC cutting machine

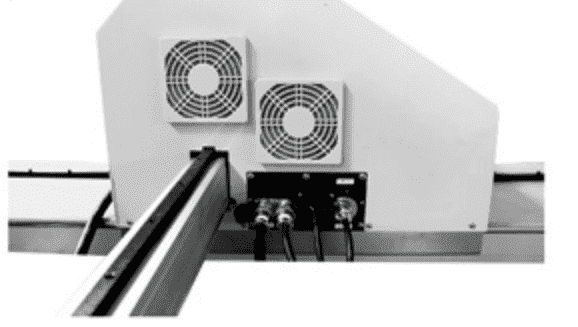

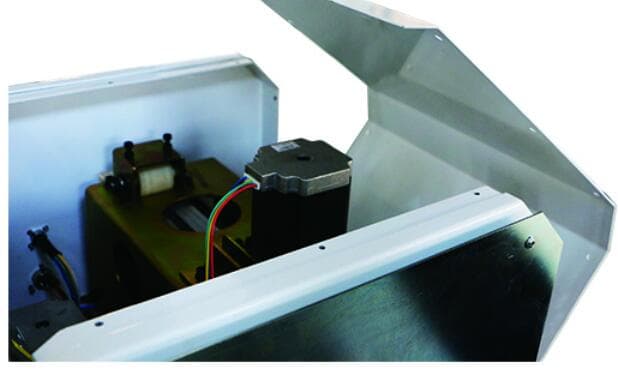

Easy for maintenance: Separated main engine,machine cover can be removed directly,no wires connected
High quality components and external ports,External ports:Solenoid valve, motor driver, various types of switches and other parts, most of them are obviously superior to similar products.Power-E portable CNC cutting machine

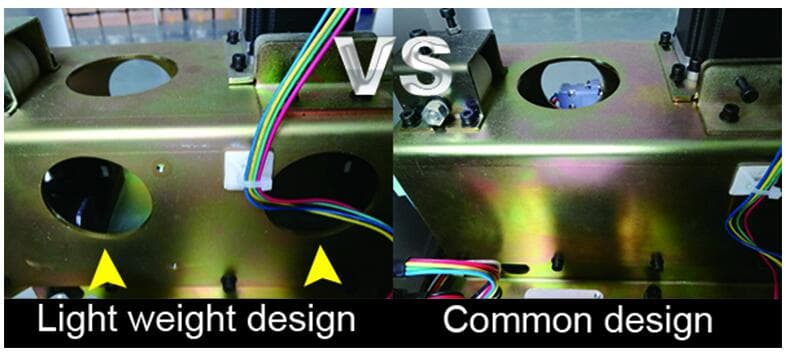

Light weight design for the main engine:Main engine compared with commen design

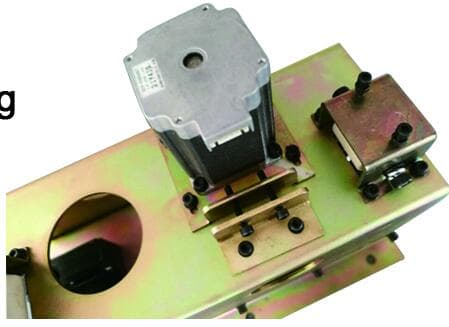

Fixed motor rack + pinion gearing:Not using universal spring structure, but adding 1-6 hours of debugging time for each set of motors to ensure its running precision and improve service life of components.

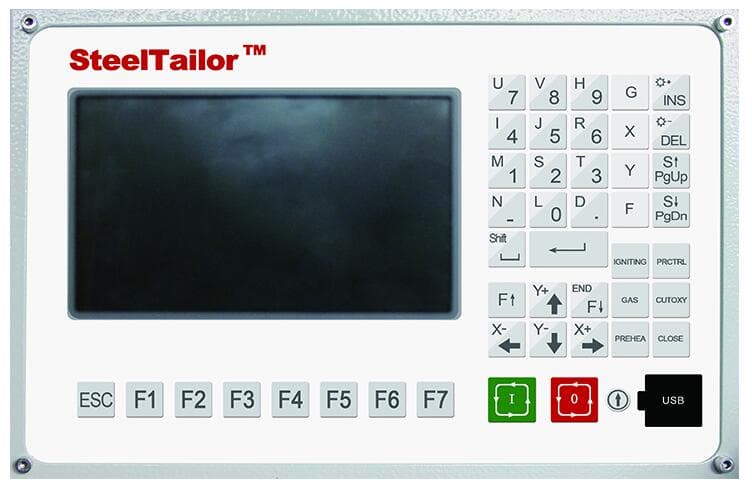

Powerful CNC Controller
Built-in library of commoly used figures
Break-point & power-cut restoration
Returning to reference point
Kerf compensation
Revolving
Mirror image

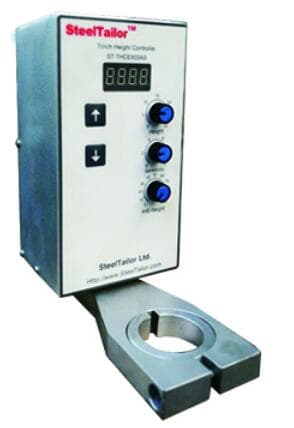

High quality built-in THC system
For plasma cutting
Stepper motor controls Z axis
Precised transmission system
Anti-electromagnetic interference

Power-E portable CNC cutting machine

2 year warranty  for the whole machine

Reviews

There are yet no reviews for this product.
