Portable CNC cutting machine

SteelTailor DragonII gantry CNC cutting machine

Array

$0.00

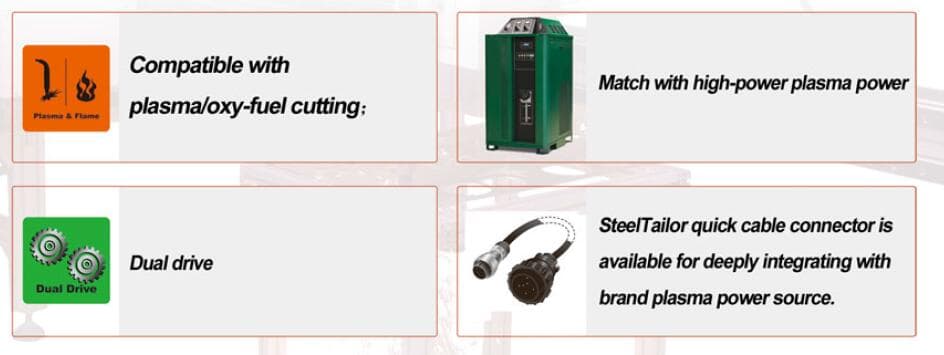

1. No need of computer
2. Plasma/oxy-fuel cutting;Dual drive;
3. Save money——replace most of the traditional cutting requirements, saving up to 50% of the cost;
4. Match with high-power plasma power;
5. SteelTailor quick cable connector is available for deeply integrating with Hypertherm and Kjellberg plasma.
Product Available Date: 2019-09-01

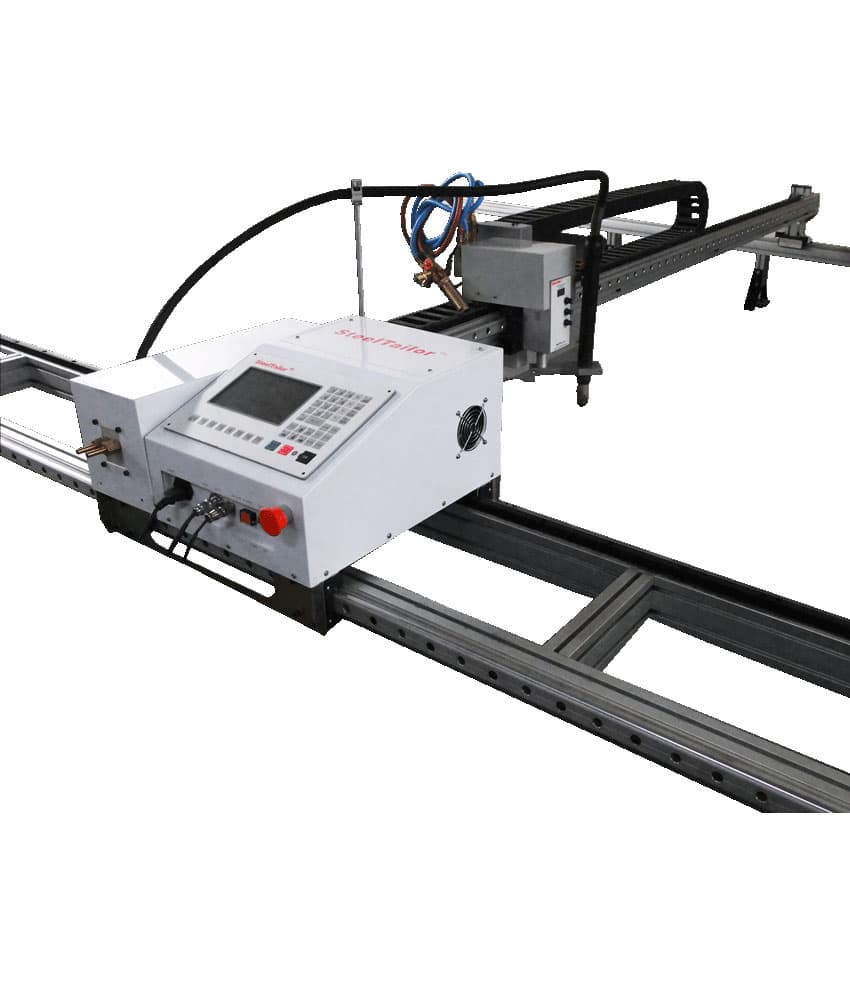

 SteelTailor TM Portable Gantry CNC Cutting Machine

Creative, create Wealth for You!
Advantages of SteelTailor DragonII gantry CNC cutting machine:
1. No need of computer
2. Plasma/oxy-fuel cutting;Dual drive;
3. Save money——replace most of the traditional cutting requirements, saving up to 50% of the cost;
4. Match with high-power plasma power;
5. SteelTailor quick cable connector is available for deeply integrating with Hypertherm and Kjellberg plasma.

Features of SteelTailor DragonII gantry cutting machine:

DRAGON II gantry cutting machine is a new type, powerful enough to replace the traditional CNC cutting machines. After 3 years, this newly-upgraded DRAGON II gantry cutting mahine significantly improved the
performance of plasma and flame THC, making the whole machine more durable. With a capability of equipping with high-power plasma power, DRAGON II gantry CNC cutting machine fully demonstrated the
maturity of portable cutting technology originated by SteelTailor. Since DRAGON II gantry cutting machine enjoys a cutting precision of ±0.2mm in pretreating process, it do deserve your like.

Why Choose Dragon II? portable gantry cutting machine!

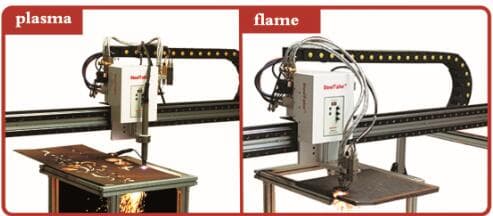

  • SteelTailor 03B THC--Adaptable for both plasma cutting and flame cutting. Automatic arc voltage sensing & capacitive sensing THC.
  • Specially designed for portable cutting machine.
  • Flame with automatic ignition system; Improve safety performance and capability of controlling gas circuit;

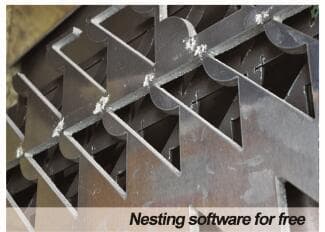

 Support Nesting, nesting software for free.
So portable!

SteelTailor made an independent R&D on THC detector, which can simulate part of arc voltage output signal of plasma offered by customers.

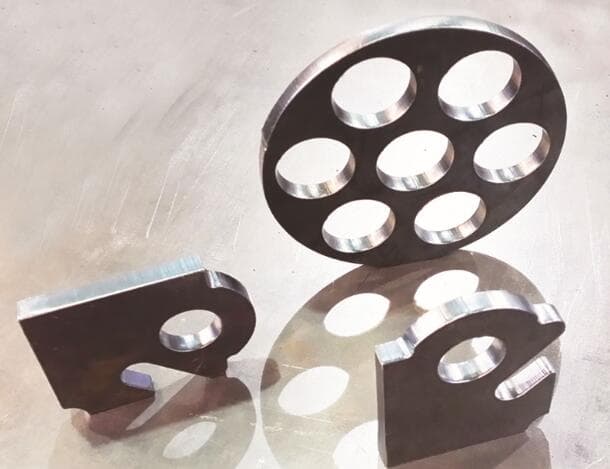

Larger cutting thickness ,better cutting quality


Dual drive, reinforced mechanical structure, be able to equip with high-power plasma;


Match with most of the plasma powers

SteelTailor made an independent R&D on THC detector, which can simulate part of arc voltage output signal of plasma offered by customers. This could help SteelTailor products compatible with various kinds of plasma powers.

——Quick cable connector, connecting with Kjellberg or hypertherm plasma power and cutting machine;

——Strengthen load capacity, available for 16kg of cutting torch;

——Circuit and THC enjoy the function of anti-interference, compatible with most of the plasma powers.

——8-year rich experience of working with more than 2000 plasma
