Legend Plus-E drilling and table plasma cutting machine drilling and cutting video during Essen Fair.

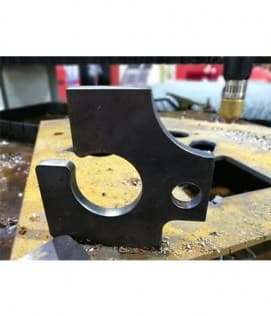

Plus-E drilling plasma cutting machine workpiece:
Φ8mm, thickness:8mm.
Φ8mm, thickness:8mm.

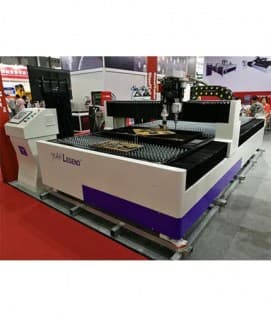

Legend Plus-E economical CNC drilling and table plasma cutting machine

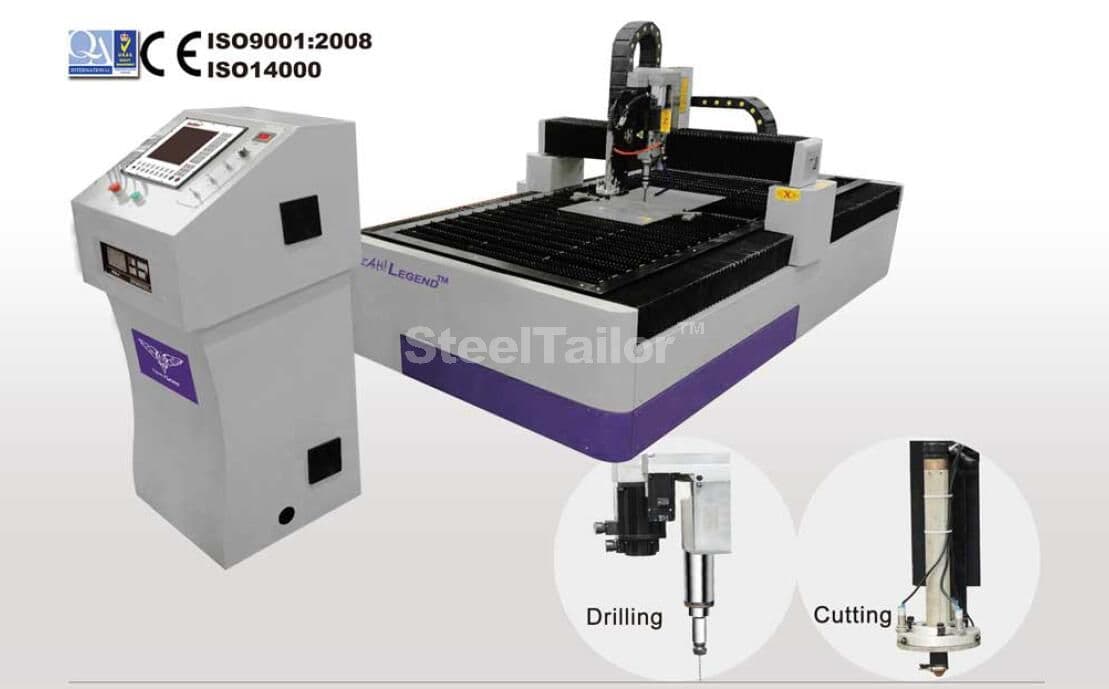

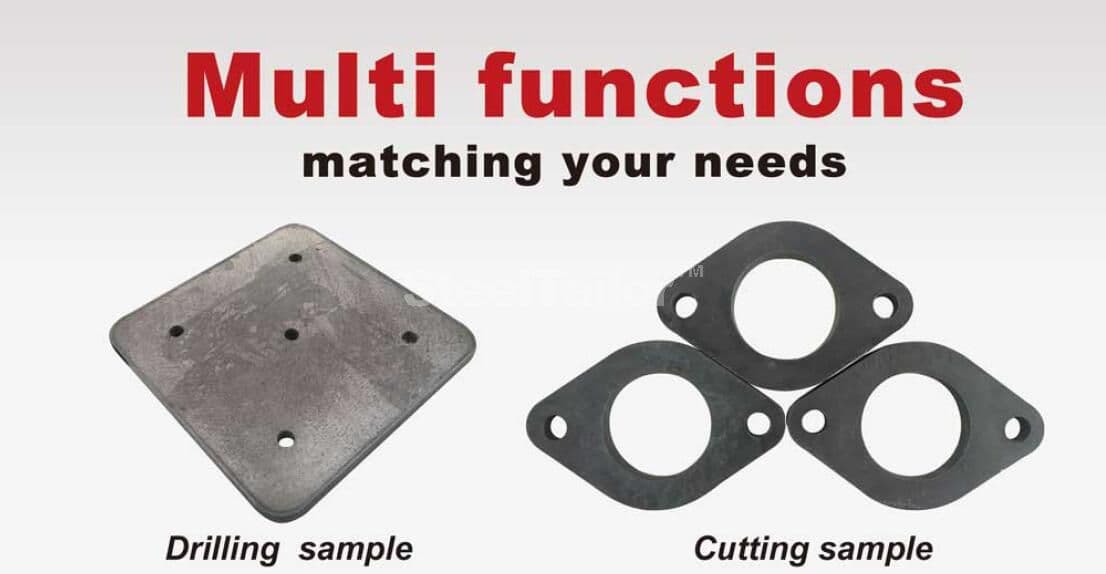

Legend Plus -E drill and table plasma cutting machine multi functions matching your needs
Legend Plus-E CNC plasma cutting machine cutting and drilling with better competitiveness
Drilling plasma cutting Controller and THC panel; Multiple metal processing only one G-cod file .
Detection and debugging of running accuracy of PLUS-E CNC machine.Repeat accuracy: ≥ 0.02mm
200A HD plasma cutting torch and CNC drilling machine+ drilling water cooling.
Fixture for steel plate of CNC drilling machine.Make sure be fixed during cutting and drilling.
Compared with spur gear, Silent helical gear has better running accuracy and reduces machine wear.
Reinforced brackets and waterproof packaging, fumigation-free box;Maximize the safety of machine during shipping.
More Durable Heavy anti-collision torch lifting, protect the torch from damage.
Black oxide, electroplating and abrasive blasting finish; multiple anti-corrosive treatment for the whole machine.
Anti-interference Circuit
All of the signal circuits and power lines are designed according to the anti-interference standard, ensuring long-term operation without interference.
Powerful Expert Version Nesting Software
Drawing system, cutting path system, nesting system and calibration system.
Configuration
| Controller | SteelTailor |
| Reducer | Plantary reducer |
| Servo motor | Panasonic |
| THC | Arc voltage THC |
| Drilling device | SteelTailor |
| Software | FastCAM(Professional) |
Legend Plus-E plasma cutting machine Technical Parameter
| Type | Legend Plus-E Drilling Cutting Machine |
| Power Supply | 380V Three Phase 50Hz+-1% 2KW |
| Effective cutting width | 1500mm |
| Effective cutting length | 3000mm |
| Plasma cutting thickness | Depends on plasma power source |
| Cutting speed | 0-4000mm/min |
| Rapid speed | 0-10000mm/min |
| Torch lifting | <=170mm |
| Driving system | Dual drive |
| Dimension(L*X*W) | 3700*2000*1600mm |
| Driller size | Diameter<=16mm |
| Z axis speed(drill) | <=120mm/s servo feeding |
| Rotate speed (driller) | 50-1200n/min frequency control |
| Drilling thickness | 2-30mm |
| Controller | SteelTailor controller |
